Brand
ISEKI
| SPECIFICATION | ||
| MAKE | FARMASTER | |
| Model | SP260 | |
| Engine | Model | HINO JO8C-T |
| Type | Inter Cooled, 6 Cylinder-in-line, 4 cycle, vertical, overhead valve water cooled | |
| Max power, hp | 260 | |
| No. of cyclinder | 6 | |
| Rated speed, rpm | 2500 | |
| Aspiration | Turbocharged | |
| Bore x Stroke, mm | 114 x 130 | |
| Displacement, cc | 7961 | |
| Max Torque, Nm | >745 | |
| Max Torque Speed, rpm | <1500 | |
| Compression Ration | 18:1 | |
| Air-Cleaner | Dry | |
| Drives Brake | Transmission | Hydrostatic |
| Max. Flow, cc | 68 | |
| Steering Control | 2 lever | |
| Drive Method | Hydrostatic | |
| Travel Brakes | Hydraulic Lock | |
| Travelling speed (Fwd & Rev) | 0-20km/hr | |
| Undercarriage | Track type | S |
| Track adjustable | Manual | |
| Main chassis | 8" x 2" | |
| Main chassis type | C + U pressed | |
| Main frame | 5" x 8" x 2" | |
| Main frame type | C type | |
| No. of track roller | 10 each side | |
| Sprocket type | D2 | |
| Track Chain link | 44 each side | |
| No. of track shoe | 44 each side | |
| Track shoe size, mm | 800 x 112 | |
| Rotary Tiller | Working width, mm | 2500 |
| Working depth, mm | 200 | |
| Power by | Hydrostatic | |
| PTO Hydraulic, max. flow | 76cc | |
| Hydraulic control, max. flow | 32cc | |
| Universal driveshaft | A12 | |
| No. of speeds | M4 - M6 | |
| Type of side drive | Gear | |
| No. of blades | 90pcs | |
| Blade size | 7 x 6 cm | |
| Operating Weight & Performance | Dimension, cm | 5200 x 2650 x 2700 |
| Weight, kg | 5,800 | |
| Performance, ha/hr | 1-1.8 | |
| Body | Front hood | 21.5mm mild steel |
| SPECIFICATION | ||
| MAKE | FARMASTER | |
| Model | SP200 | |
| Engine | Model | HINO JO8C-T |
| Type | Inter Cooled, 6 Cylinder-in-line, 4 cycle, vertical, overhead valve water cooled | |
| Max power, hp | 200 | |
| No. of cyclinder | ||
| Rated speed, rpm | ||
| Aspiration | ||
| Bore x Stroke, mm | ||
| Displacement, cc | ||
| Max Torque, Nm | ||
| Max Torque Speed, Rpm | ||
| Compression Ration | ||
| Air-Cleaner | ||
| Drives Brake | Transmission | Hydrostatic |
| Max. Flow, cc | 68 | |
| Steering Control | 2 lever | |
| Drive Method | Hydrostatic | |
| Travel Brakes | Hydraulic Lock | |
| Travelling speed (Fwd & Rev) | 0-20km/hr | |
| Undercarriage | Track type | S |
| Track adjustable | Manual | |
| Main chassis | 8" x 2" | |
| Main chassis type | C + U pressed | |
| Main frame | 5" x 8" x 2" | |
| Main frame type | C type | |
| No. of track roller | 10 each side | |
| Sprocket type | D2 | |
| Track Chain link | 44 each side | |
| No. of track shoe | 44 each side | |
| Track shoe size, mm | 800 x 112 | |
| Rotary Tiller | Working width, mm | |
| Working depth, mm | ||
| Power by | ||
| PTO Hydraulic, max. flow | ||
| Hydraulic control, max. flow | ||
| Universal driveshaft | ||
| No. of speeds | ||
| Type of side drive | ||
| No. of blades | ||
| Blade size | ||
| Operating Weight & Performance | Dimension, cm | |
| Weight, kg | ||
| Performance, ha/hr | ||
| Body | Front hood | |

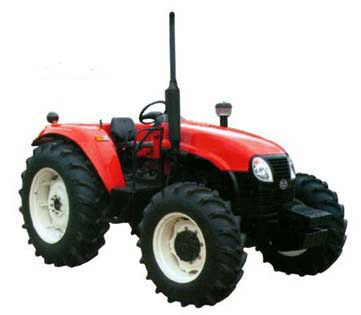

| FARMASTER C105DT | |
| No. of cylinders / aspiration | 4/naturally |
| Capacity cm3 | 5130 |
| Bore x stroke, mm | 110 x 135 |
| Max. engine power, hp | 100 |
| Rated engine speed, rpm | 2200 |
| Max. torque at 1500pm, Nm | 395 |
| Fuel tank capacity, L | 135 |
| Transmission | |
| No. of gear (F x R) | 12 x 4 |
| Speed range / with creeper gear (optional), km/h | 1.65 ¡V 27.2 / 0.30 ¡V 4.30 |
| Hydraulics | |
| Rear Linkage Category | II |
| Position, draf, mixed and float controls | Standard |
| Main Pump flow ¡V Standard, L/min | 40 |
| Remote valves | |
| Max. number | 4 |
| Mid mount couplers | Optional |
| Linkage | |
| Maximum lift capacity at ball ends with arms horizontal, kg | 4650 |
| Continous lift capacity through the range (610mm behind bar ends). Kg | 3770 |
| PTO Engine speed at, pm: | |
| 540 rpm | 2180 |
| 1000 rpm | 2400 |
| PTO activation | Mechanical |
| Turnaround diameter at narrowest track setting | |
| Turn angle. | 55 |
| Min. turn radius, mm | 4100 |
| Dimensions | |
| Overall length, mm | 4260 |
| Overall width, mm | 2120 |
| Height over steering, mm | 2000 |
| Wheelbase, mm | 2342/2314 |
| Track width - Front, mm | 1562 - 2000 |
| Rear Min. / Max. (all axle types), mm | 1520 - 2120 |
| Ground clearance, mm | 450 |
